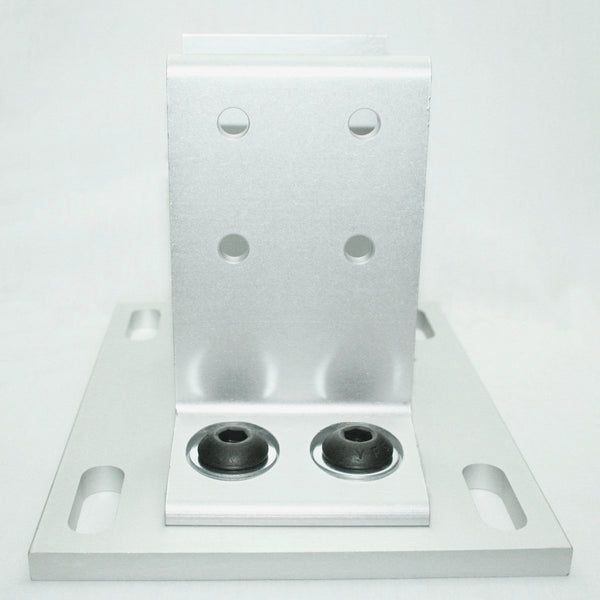

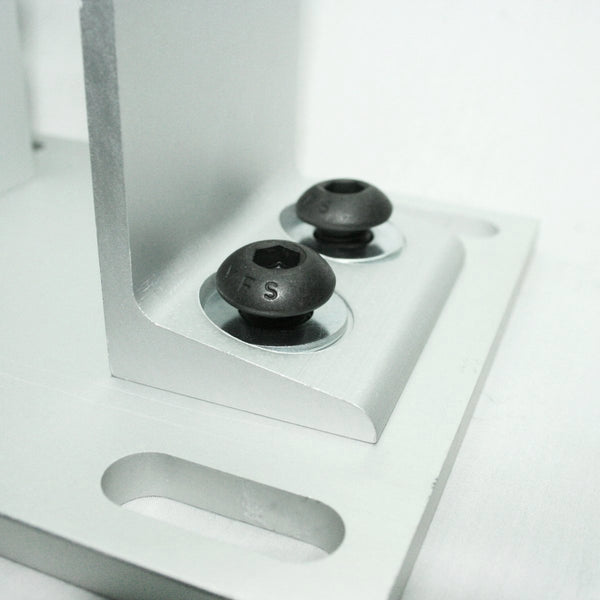

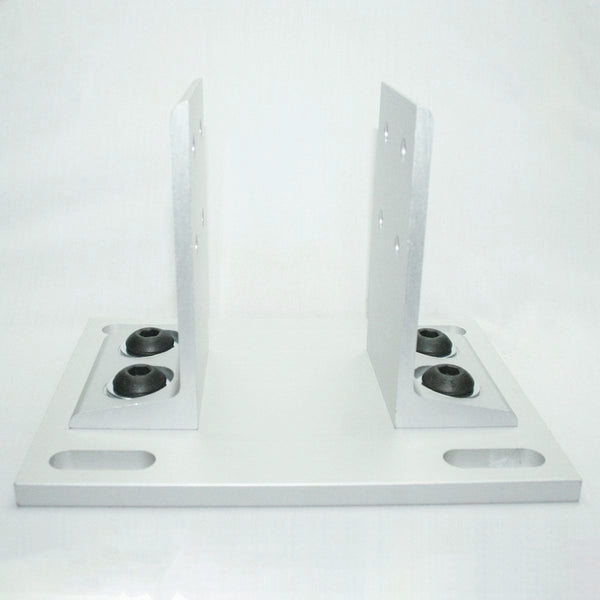

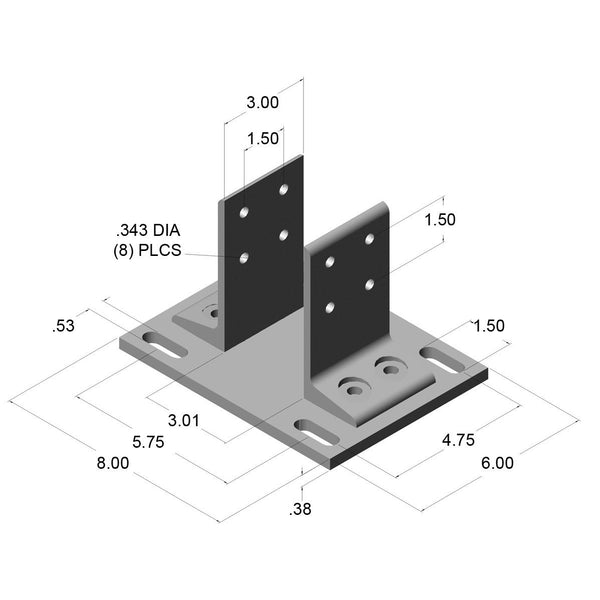

3.0" x 3.0" Deluxe Floor Mount Base Plate

Part # 15FF5833

Regular price $ 42.12

Part#: 15FF5833

Material: Clear Anodized Aluminum

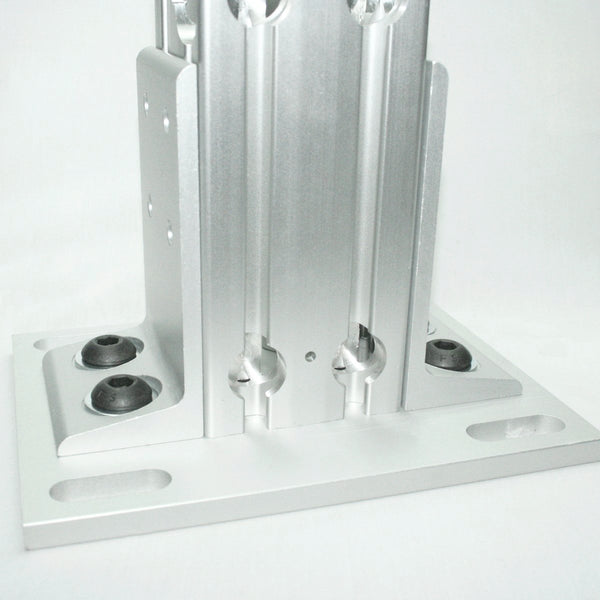

Securely mounts the frame to the floor

 Hardware Included:

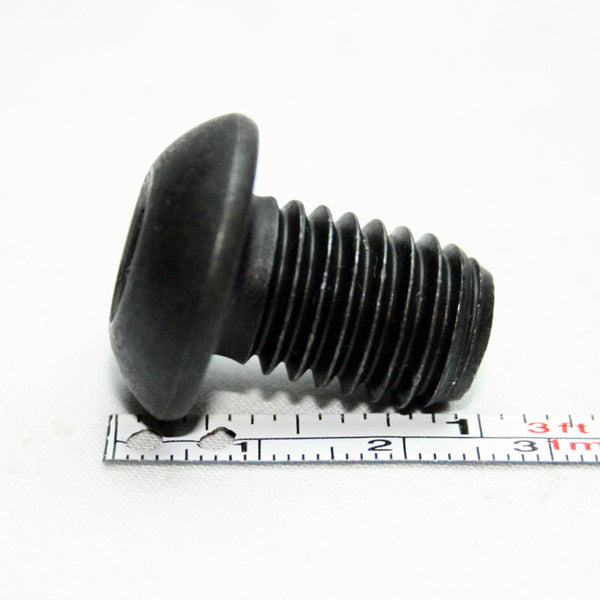

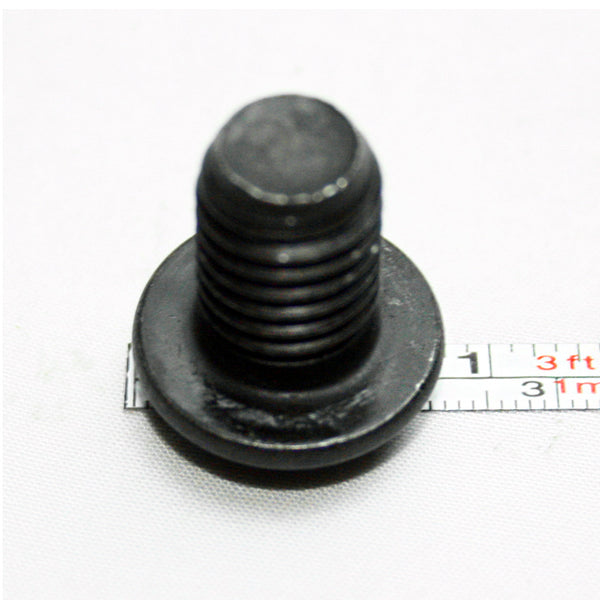

(4) 1/2"-13 x 3/4" BHSCS

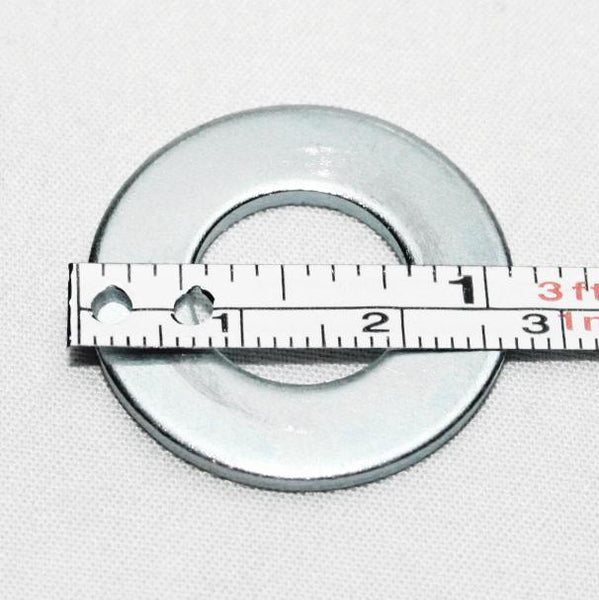

1/2" SAE Washer(4) 1/2" SAE Washer (not available online)

Recommeded

Recommended Hardware:
 (8) 5/16"-18 x 5/8" FBHSCS
 (4) 5/16"-18 Double Economy T-Nut

Downloads

Downloadable CAD Files

DWG     DXF     IGES     STEP

3D View
