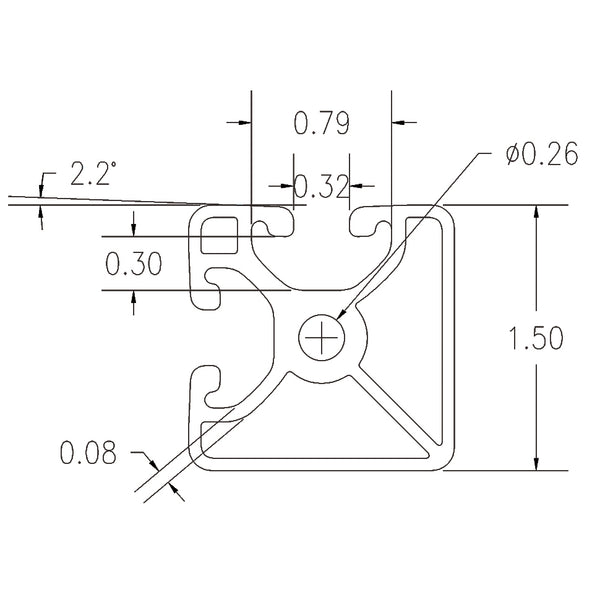

1.5" x 1.5" Lite Smooth Bi-Slot Aluminum Extrusion

15QEB1515L T-slotted Extrusion

Part #:                        15QEB1515L
Material:                    6063-T6
Finish:                        Clear anodize finish
Weight Per Foot:       1.298 LBS
Moment of Inertia:   IX = .2450"⁴
                                    IY = .2450”⁴
Estimated Area:         1.075 SQ IN

For additional cut-to-length and machining services call our team today at (260) 482-7544

Downloads

Downloadable CAD Files

DWG     DXF     IGES     STEP

3D View
